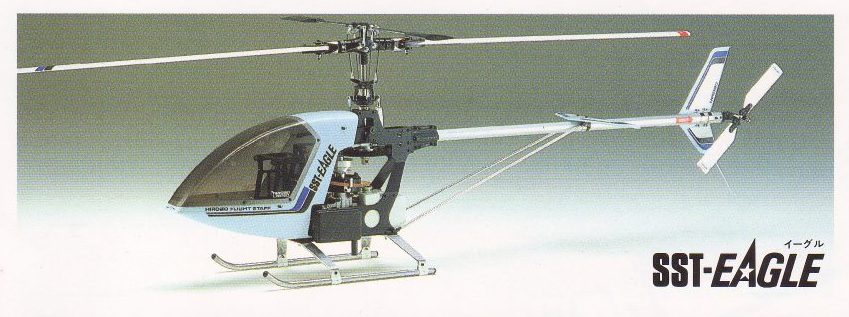

Hirobo SST-EAGLE (87)

Specification:

 Full Length of Fuselage  1330 mm
 Rotorhead  FFZ / SSR III
 Main Rotor Dia  1500 mm
 Tail Rotor Dia  280 mm
 Engine  0.60/0.61, 10ccm
 Full Equipped Weight  4600 g
 Rotorhead  DDF, SSR


Documents:

Manual SST-Eagle

SST-Eagle Parts list  -  1991 with cross references



Original version.

Based on the mechanics set of the Hawk and fitted with a 50 size engine.

  Relationship of BB-SS range and scale bodies in 1989.

1990 catalogue photo

SST-EAGLE EX (91)

Upgraded version of the Eagle.

  1994 catalogue

Pod and boom F3C spec helicopter.  Available with either belt or tube driven tail rotor and SSR-II rotor head.

  • SST2_1
  • SST2_2
  • SST2_3
  • SST2_4
  • SST2_5




SST-EAGLE2 (95)

      Catalogue (1995)

High performance helicopter incorporating push-pull linkages and the new SSR-IV rotor head.

  • Eagle_051
  • Eagle_052
  • Eagle_053
  • Eagle_101
  • Eagle_102
  • Eagle_103
  • Eagle_104
  • Eagle_105
  • Eagle_106
  • Eagle_107
  • Eagle_108
  • Eagle_109
  • Eagle_110
  • Eagle_111
  • Eagle_2_101
  • Eagle_2_102
  • Eagle_2_103
  • Eagle_2_104
  • Eagle_2_105
  • Eagle_2_106
  • Eagle_2_107
  • i-img1200x900-1629599346pvizbf21


SST-EAGLE2-EX (95)

Specification:

 Full Length of Fuselage  1330 mm
 Rotorhead
 Main Rotor Dia  1500 mm
 Tail Rotor Dia  280 mm
 Engine  0.60/0.61, 10ccm
 Full Equipped Weight  4600 g


Documents:

Manual SST Eagle II		   SST-Eagle G Parts list  -  1995 edition



      Catalogue (1995)

Upgraded version of the Eagle2 having aluminium levers, titanium screws with carbon fibre frames, boom, tail drive, fins and blades to further reduce weight.



SST-EAGLE2 & 2-EX (98 spec)

Specification:

 Full Length of Fuselage  1430 mm
 Rotorhead
 Main Rotor Dia  1520 mm
 Tail Rotor Dia  270 / 265 mm
 Engine  0.60/0.61, 10ccm
 Gear ratio  9.5 : 1 : 5.27
 Full Equipped Weight  4800/4600 g


Documents:

SST-Eagle2/2-EX 98 spec
Parts list  -  1998 edition



Included options for both belt and shaft drive.

  • DSC_1958
  • DSC_1959
  • DSC_1960
  • DSC_1961
  • DSC_1963
  • IMG_1247


SST-EAGLE2 Gx(24cc) (96)

  • Eagle_2_gasser_101
  • Eagle_2_gasser_102
  • Eagle_2_gasser_103
  • Eagle_2_gasser_104
  • Eagle_2_gasser_105
  • Eagle_2_gasser_106
  • Eagle_2_gasser_108
  • Eagle_2_gasser_109

Modified frame and gear ration to take a 24cc Petrol engine;Thanks to Nathan for the photos of his Eagle2 Gx!

SST-EAGLE2 WC (97)

Modified to include options from the 'World Champion' winning version.

  • E2_Canopy
  • E2_LHS
  • E2_RHS
  • EX2
  • Eng






The Eagle 2 mechanics were made available as a separate item for fitting in dedicated 'sports' fuselage kits, the following two being suitable.



 Selection of optional parts suitable for the SST-Eagle versions above.

SST-EAGLE3 WC (03)

Shaft drive version only.

SST-EAGLE3 WC belt (05)

Modified to include belt drive option.

SST-EAGLE3 SWM (06)

Further upgrade for Mechanical CCPM (SWM - Swash Mechanical).
